ELEVATOR BOAT LIFTS
Golden Aluminum Elevators are the best designed elevator lift on the market today. These boat lifts provide a solution for situations such as narrow canals, embankments and locations where pilings cannot be used. The lift is constructed from marine grade 6061 aluminum and has many innovative features not found on competing lifts.
FEATURES OF THE ELEVATOR BOAT LIFT

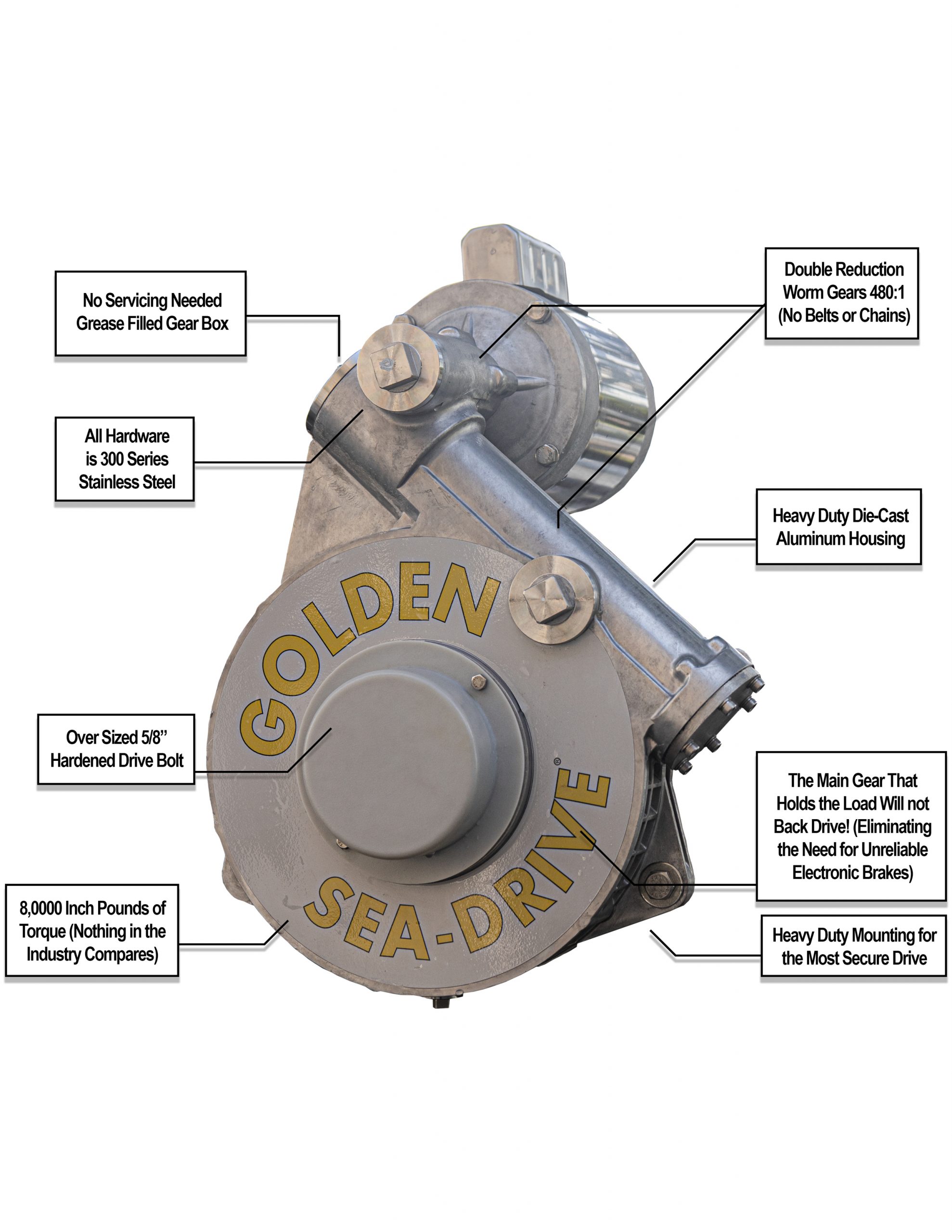

SEA-DRIVE WORM GEAR
The double reducing worm-gear provides industry leading torque while eliminating any potential back-drive. It’s robust construction can handle any marine environment!

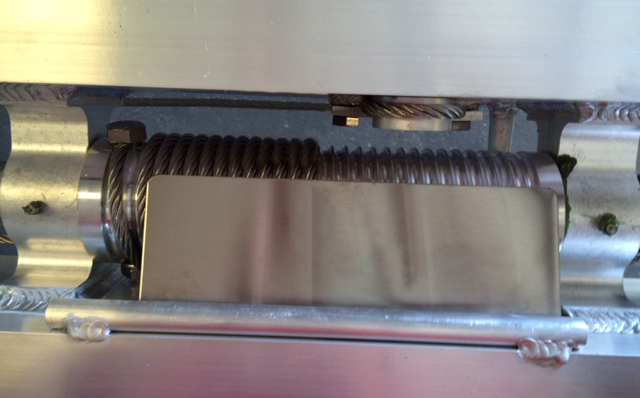

GROOVED CABLE WINDER
The grooved cable winder is milled from an aluminum billet. It prevents the cable from reeling on itself which leads to premature wear.

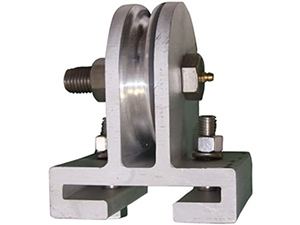

PULLEYS WITH GREASE FITTINGS
Our aluminum pulleys come with stainless steel shafts with grease nipples that allow for easy annual lubrication with a grease gun.

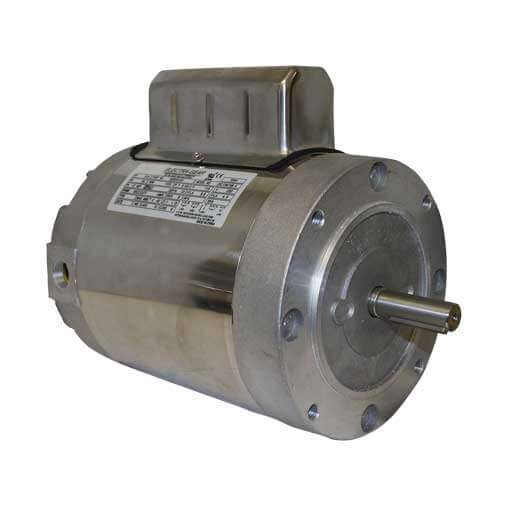

STAINLESS STEEL MOTORS
The Leeson stainless motors have proven reliability, their stainless steel housing can stand up to the harshest marine environments.

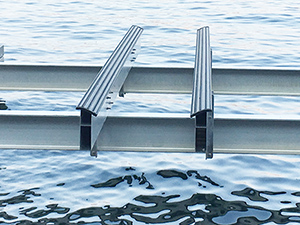

ALUMINUM RUBBER CAPPED BUNKS
The most rugged bunk in the industry. The rubber capped aluminum bunks contour to your boats hull while providing a safe non-marring surface for your boat to rest on.

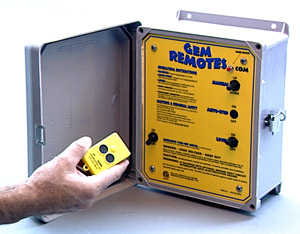

WIRELESS REMOTE OPERATION
Gem remotes is the trusted industry standard for 4-Post Boat Lift operation. Our lifts come standard with 2 wireless remote controls.
QUESTIONS?
WE’RE HERE TO HELP!
- GORGEOUS SHOREFRONT APPEAL
- MODULAR DESIGN
- INNOVATIVE FEATURES
- MODULAR DESIGN

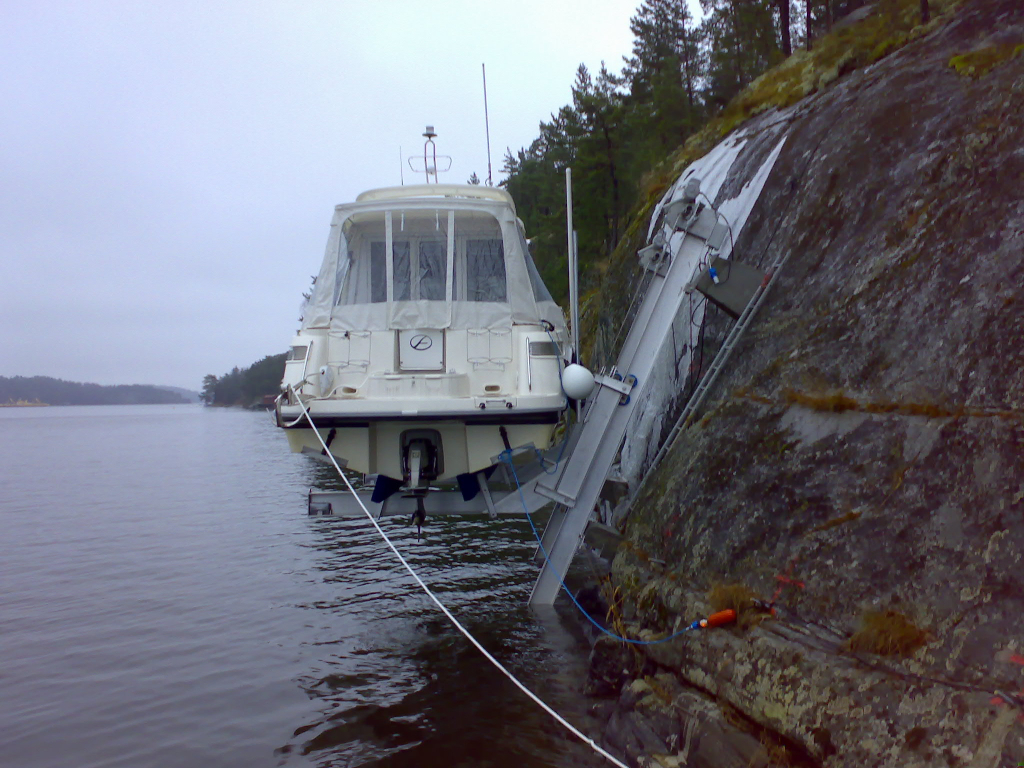

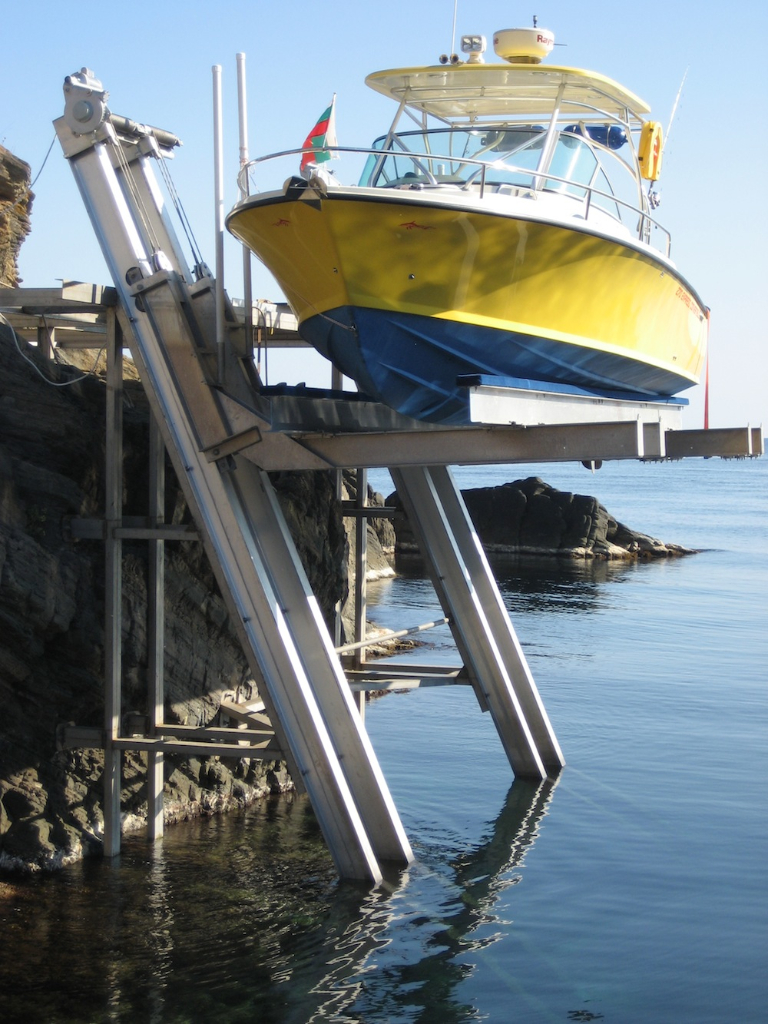

NO PILINGS, NO PROBLEM
Elevator boat lifts can be installed in areas where you can’t have pilings, the tracks are driven into the ground and rest against the dock or the seawall. The angle of the lift can vary to accommodate different water depths and how far out you need to reach. We recommend the standard 22.5 degree slope to the tracks as it puts the least amount of strain on the supporting structure.

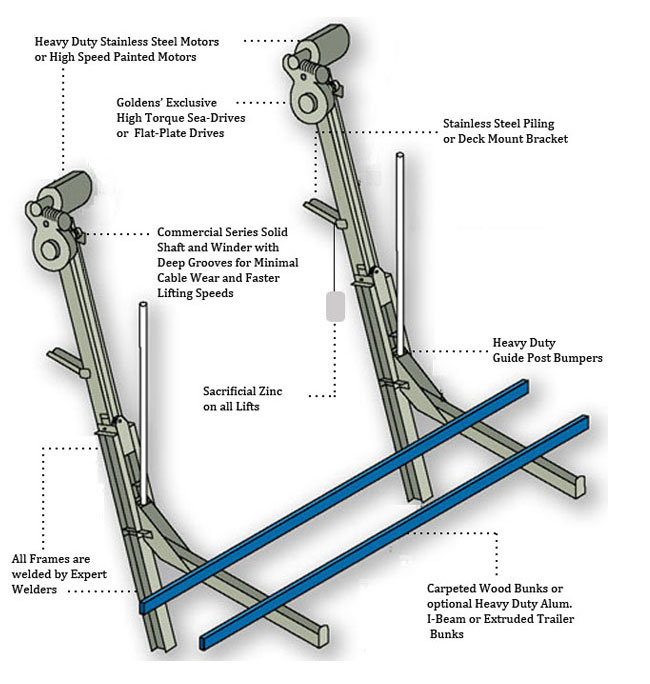

HOW IT WORKS
The Elevator Boat Lift has two aluminum tracks that are driven into the ground, the angle of the tracks can be varied depending on the needs of the customer. At the top of each track mounts the Head which encompass the SeaDrive gear box, the cable winder and the electric motor, these heads wind the cable that raises/lowers the cradle arms. Two bunks connect the cradle arms together, the bunks are available in a variety of materials and styles to accommodate practically any boat. The lifts can be wired either 120V or 240V depending on available power, solar option available upon request.
CAPACITIES
The Elevator Boat Lift comes in a wide range of capacities to accommodate a large array of boats.
- 3,000 LBS
- 5,000 LBS
- 7,000 LBS
- 10,000 LBS
- 12,000 LBS
- 15,000 LBS
- 17,000 LBS
- 20,000 LBS
- 24,000 LBS
- 30,000 LBS
- 40,000 LBS
ELEVATOR ADVANTAGE
- SEADRIVE WORMGEAR
- 6061 ALUMINUM FRAME
- STAINLESS STEEL CABLE
- STAINLESS STEEL BRACKETS & AXLES
- NYLATRON WHEELS
- OVERSIZED GROOVED CABLE WINDERS
- GUIDE POSTS
- ZINC ANODES
BROCHURE & TECHNICAL SPECIFICATIONS
For more information on the Elevator Boat Lifts please download the brochure or contact us for more information.
